Wall-Mount Enclosures – SS & MS

nvent hoffman logo

Specifications :

  • Manufactured from Type 304 or Type 316 stainless steel
  • Minimum-width body flange provides maximum body opening
  • External formed 90-degree body flange
  • Inside Mounting Plate (G1) included
  • Mounting holes in back of body for direct mounting or for optional external mounting brackets
  • Type 316 stainless steel hidden hinges promote clean aesthetic appearance
  • Doors are easily removed by pulling clip style hinge pins
  • Quarter-turn latches furnished with double bit insert
  • Seamless foam-in-place gasket
  • Bonding provision on door; grounding stud on body
  • Window doors having a clear polycarbonate window - available on request
  • Captivated Type 316 stainless steel cover screws with sealing bushings made of a durable compo
  • Integral compression stops maintain optimal gasket compression

    • Industry Standards

    Mounting brackets required to meet UL external mounting requirements.

    UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
    NEMA/EEMAC Type 3R, 4, 4X,12,13
    VDE IP66
    IEC 60529, IP66

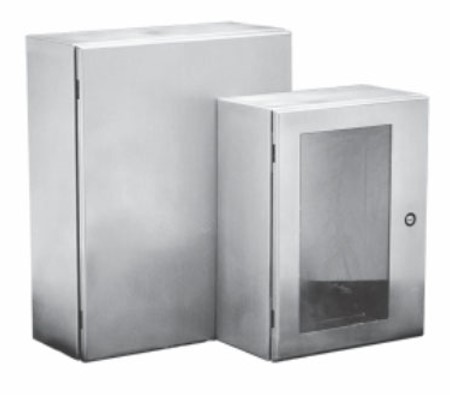

    wall mount enclosures img
