Wall-Mount Enclosures in Stainless Steel
nVent HOFFMAN ASR / ADR & M Series – Stainless Steel Wall Mount Enclosures
The nVent HOFFMAN ASR / ADR & M Series enclosures are stainless steel enclosures designed for robust protection in demanding environments, particularly within the food & beverage and pharmaceutical industries. The ASR series features a single door, while the ADR series offers a double door design. The M Series includes both single and double door options. All are available in AISI 304 or AISI 316L pre-grained stainless steel for superior corrosion resistance.

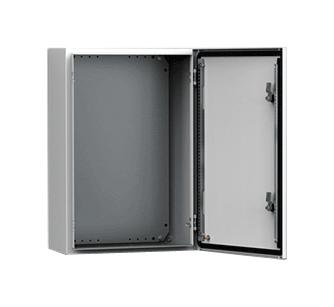

ASR (Single Door):
- Wall-mounted single or double-door design in stainless steel SS304 & SS316L
- Ideal for compact areas with single access requirement
- Protects against dust, moisture, and corrosion (IP66, TYPE 4X, 12, IK 10)
- Strengthened folded edges, adjustable mounting plate position
- Brushed stainless steel finish
- Includes mounting plate, plastic double-bit key, and hardware

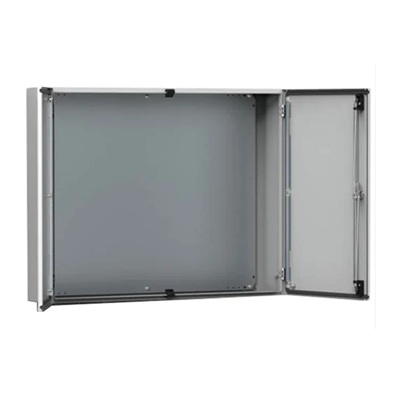

ADR (Double Door):
- Double-door wall-mounted design for tight space and heavier loads
- Enhanced accessibility with wide opening
- Rated IP55, TYPE 12, IK 10 for environmental protection
- Double-bit lock with 3-point locking system
- Brushed stainless steel with mounting accessories included
Key Features (All Models):
- Material: AISI 304L / 316L stainless steel for corrosion resistance
- Folded and seam-welded body with laser-marked back corners
- Corner-formed, surface-mounted doors opening to 130°
- Zamak double-bit lock with anti-vibration mechanism
- Mounting plate marked at 10mm intervals for easy setup
- No standard gland plates to maximize sealing integrity
- Protection ratings: IP66 / IP55, TYPE 4X, 12, IK 10
- Finish: 400 pre-grained stainless steel
Industry Certifications:
- UL 508A Listed – Type 4, 4X, 12
- CSA Certified – Type 4, 4X, 12
- NEMA/EEMAC / IEC 62208 / IP66 / IP55
- CE, UK CA, DNV, EAC Compliant
Applications:
- Outdoor areas exposed to precipitation (rain hood recommended)
- Corrosive environments with harsh chemicals
- Food & Beverage industries (including indirect contact zones)
- General industrial use (switches, control panels, etc.)
Benefits:
- Durability: Long-term protection for vital equipment
- Reliability: High-performance in demanding conditions
- Security: Double-bit lock prevents unauthorized access
- Ease of installation and maintenance
