Floor Standing Stainless Steel Enclosures

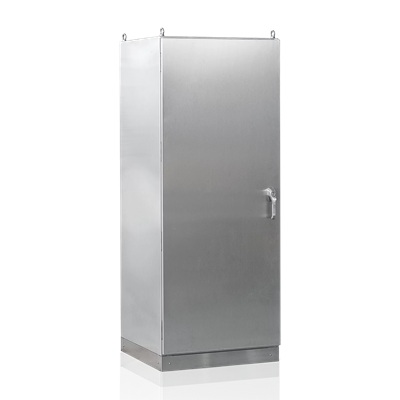

HOFFMAN FS66S – STAINLESS STEEL FREE-STANDING ENCLOSURE
The Hoffman FS66S enclosure is a free-standing, stainless steel enclosure designed for housing electrical and electronic equipment in harsh environments. It features a three-point latching system for secure sealing (IP66 rated) and is available in various sizes and configurations (single or dual access, one or two doors), with options for 304 or 316L stainless steel construction.
Key Features :
- Material : Stainless steel (304 or 316L)
- Construction: Continuously welded and ground seams with a brushed #4 finish
- Sealing: Foam-in-place polyurethane gasket for IP66 watertight/dust-tight protection

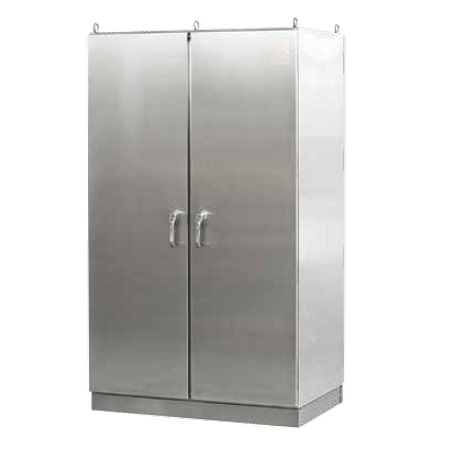

- Access: Available in single or dual access with one or two doors
- Latching: Heavy-duty three-point latching mechanism for secure sealing
- Mounting: Includes removable center post (in two-door models), internal rails, and floor-mount holes
- Protection: Ideal for dusty, wet, or oily industrial environments
Industry Standards:
- UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12
- NEMA/EEMAC Type 3, 3R, 4, 4X, 12
- IEC 60529, IP66
- Meets NEMA Type 3RX requirements
Typical Applications:
- Oil and gas
- Pulp and paper
- Chemical
- Food and beverage
- Pharmaceutical
- Textile
- Machine tool
- Outdoor DCS applications
