ELLIS Patents Cable Cleats
ELLIS Patents Cable Cleats

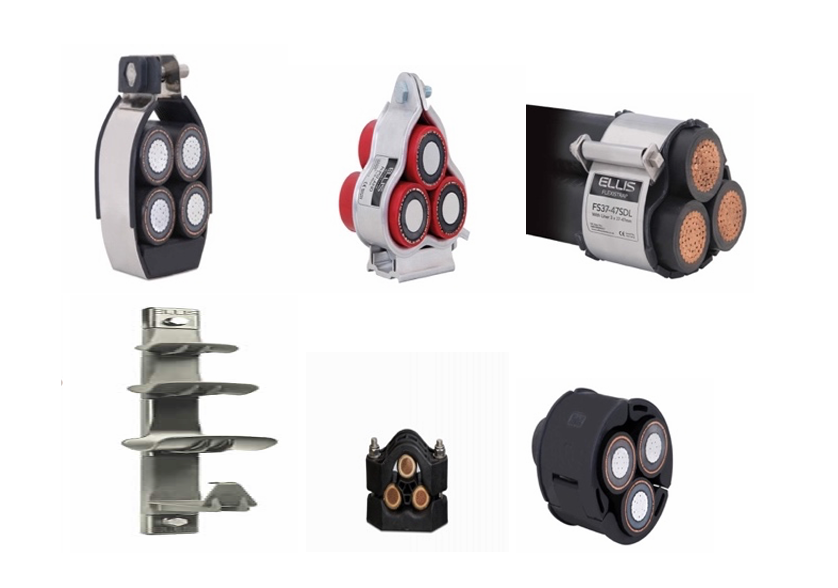

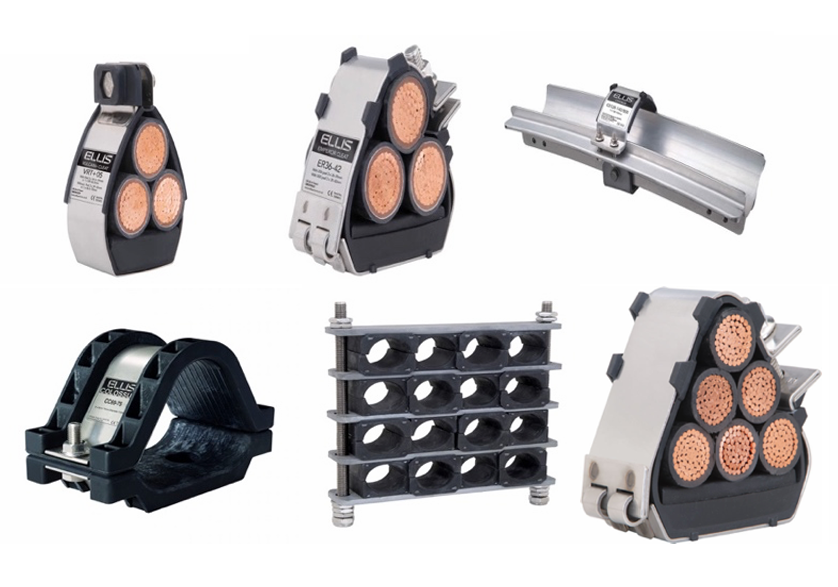

- ELLIS Patents Cable Cleats are designed to ensure the retention and support of cables and conductors, reducing the load that the cable may be exposed to under its own weight.
- A cable cleat is a device designed to secure electrical cables when installed at intervals along the length of the cables” – IEC 61914 Cable Cleats for Electrical Installations.
- Cable cleats should: Prevent excessive cable movement due to fault-current magnetic forces Be rated for specific cable size and available current.
Industry References:
- The fifth edition of API Recommended Practice 14F (Design, Installation and Maintenance of Electrical Systems for Fixed and Floating Offshore Petroleum Facilities).
- “Single core electric cables are to be firmly fixed, using supports of strength adequate to withstand forces corresponding to the values of the peak prospective short-circuit current.” – Lloyds Register.
- “Cables are to be installed and supported in ways to avoid chafing and undue stress in the cable.” – ABS Steel Vessel Rules 4-8-4/21.9 Cable Support, 4-8-4/21.9.1 General and 4-8-4/21.9.3 Clips, Saddles, Straps.
- “In order to guard against the effects of electro dynamic forces developing on the occurrence of a short-circuit or earth fault, to withstand the dynamic forces corresponding to the prospective fault current at that point of the installation.” – DNV Rules for Ships / High Speed Light Craft and Naval Surface Craft, Pt. 4 Ch. 8 Sec.10 – page 68, C50.
