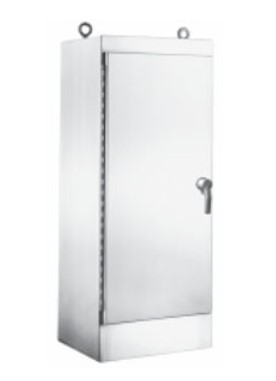

SS Free stand single and dual access enclosures,Type 4x

Specifications :

12 gauge Type 304 stainless steel

Seams continuously welded and ground smooth; no holes or knockouts

Two-door enclosures provided with a removable center post for easy panel installation

Heavy-duty lifting eyes are Type 316L stainless steel

Heavy-duty three-point latching mechanism operated by Type 316L stainless steel POWERGLIDET padlocking handle

Seem less foam-in-place gasket assures a water-tight and dust tight seal

Body flange trough collar excludes liquids and contaminants

Latch rods have rollers for easier door closing

Heavy-gauge continuous hinges support each door

High-impact thermoplastic data pocket provided with each enclosure

Mounting channels welded horizontally to interior body sides at top, bottom and center

Optional panels and rack mounting angles can be mounted anywhere along channels

Bonding provision on door; grounding stud on body

Accessory mounting channel provided in enclosure top

INDUSTRY STANDARDS

UL 508A Listed; Type 3R, 4,4X, 12;
File No. E61997

cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X. 12;
File No. E61997

NEMA/EEMAC Type 3, 3R, 4, 4X,12,13
E.I.A. RS-310-D
IEC 60529, Ip66
Meets NEMA Type 3RX requirements

Finish:

Enclosures are unpainted. Cover, sides, top and bottom have smooth #4 brushed finish. Optional steel panels, swing-out panels, side mounted panels, rack-mounting frames, heavy-duty panel supports and center panel supports are white. Optional full, half and side mounted conductive panels are available.
